Place of Origin: |
Zhejiang |
Brand Name: |
Xianchuang |
Model Number: |
YY(Q)L |
Certification: |
The company holds Class A boiler manufacturing license, American ASME and European CE certifications. |
Minimum Order Quantity: |
1 unit |
Price: |
From 8,000 RMB |
Packaging Details: |
Pallet |
Delivery Time: |
120 days |
Payment Terms: |
FOB TT EXW |
Supply Ability: |
Support video factory inspection / mechanical test report |
The Q(Y)L series gas/oil-fired vertical thermal oil boilers adopt a three-pass disc coil structure, with conical coils at the ends of the coils to effectively protect the furnace walls at the boiler ends. Equipped with advanced combustion devices, they exhibit excellent energy-saving and environmental protection performance. This boiler type is characterized by wide fuel adaptability, low pressure and high temperature operation, safety and high efficiency, with a thermal efficiency of over 95%. The perfect automatic control system enables unattended operation.
|
Model |
Rated Power (KW) |
Rated thermal power (x104kcal/h) |
Design Oil (≤℃) |
Rated Working Pressure (MPa) |
Heat Efficiency (≥%) |
System Power (KW) |
MAX Transport size (m)(L×W×H) |
|
YY（Q）L-7000Q |
7000 |
600 |
320 |
0.8 |
95 |
140 |
8.0×3.6×4.0 |
|
YY（Q）L-8200Q |
8200 |
700 |
320 |
0.8 |
95 |
140 |
8.5×3.7×4.0 |
|
YY（Q）L-9400Q |
9400 |
800 |
320 |
1 |
95 |
200 |
9.5×3.8×4.0 |
|
YY（Q）L-10500Q |
10500 |
900 |
320 |
1 |
95 |
200 |
10.5×3.8×4.0 |
|
YY（Q）L-12000Q |
12000 |
1000 |
320 |
1 |
95 |
240 |
12.4×3.8×4.0 |
|
YY（Q）L-14000Q |
14000 |
1200 |
320 |
1 |
95 |
320 |
13.5.×4.0×4.2 |
|
YY（Q）L-16500Q |
16500 |
1400 |
320 |
1 |
95 |
380 |
Design on demand |
|
YY（Q）L-18000Q |
18000 |
1600 |
320 |
1 |
95 |
450 |
Design on demand |
|
YY（Q）L-21000Q |
21000 |
1800 |
320 |
1 |
95 |
520 |
Design on demand |
|
YY（Q）L-23300Q |
23300 |
2000 |
320 |
1 |
95 |
600 |
Design on demand |
Capacity: 7000-29200KW （6-25 Million Kcal）
Applicable Fuels: Natural Gas, Diesel oil, Light oil, etc.
Application Industries: Petroleum, Chemical, Pharmaceutical,etc.
Petroleum, Chemical, Fiber, Pharmaceutical, Textile & Dyeing, Building Materials, Wood Processing, and Vegetable Oil Processing industries.
Technical Advantages:
1、Innovative Patented Variable Flow Rate Technology – Low resistance in thermal medium flow.
2、Series Structure – Small temperature difference in thermal medium.
3、Process Optimization – Counter-flow heat exchange with low exhaust gas temperature and high main unit efficiency.

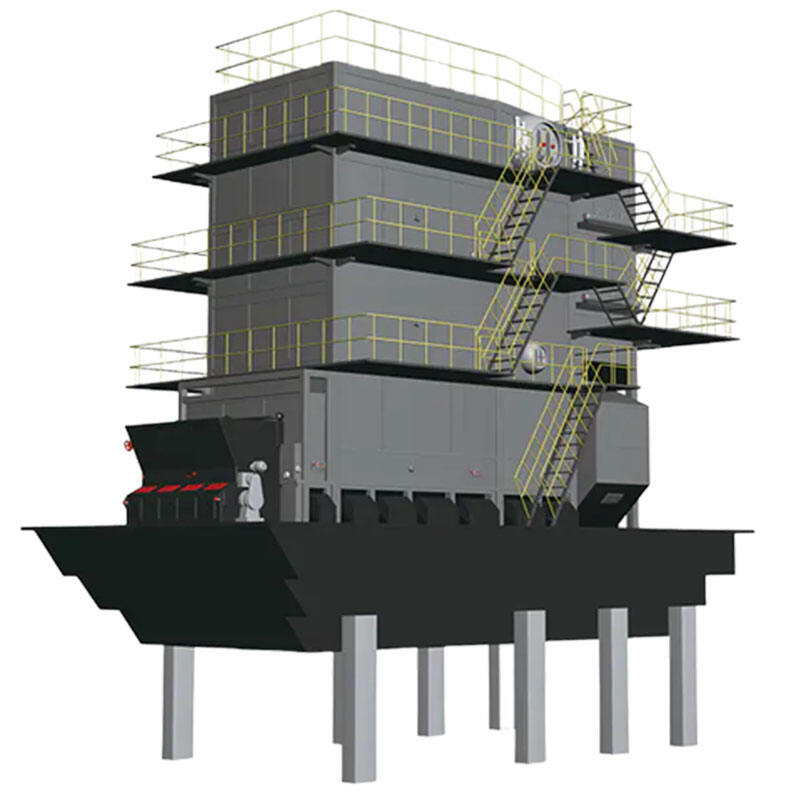

SHL Solid Fuel Coal Wood Steam Boiler
YQ(Y)W Gas/Oil Fired Horizontal Thermal Oil Boiler

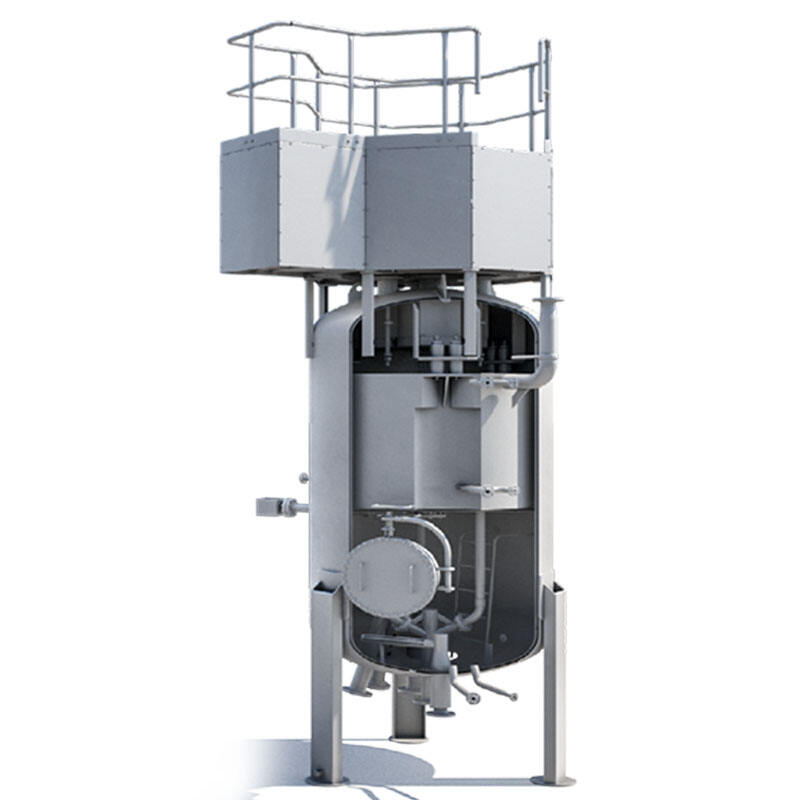

Arpany High-Voltage Electrode Steam Boiler

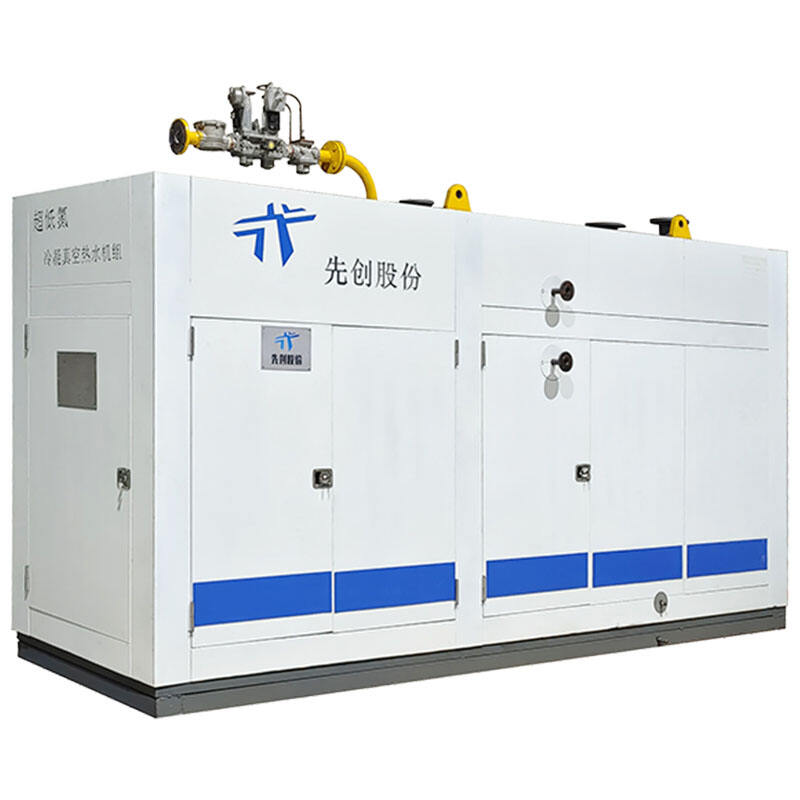

Gas-fired hot water boiler
